Manual Shrinker Stretcher S60723

Manual Shrinker Stretcher S60723

Sale price  $28.99 Regular price $130.79
Shipping calculated at checkout.

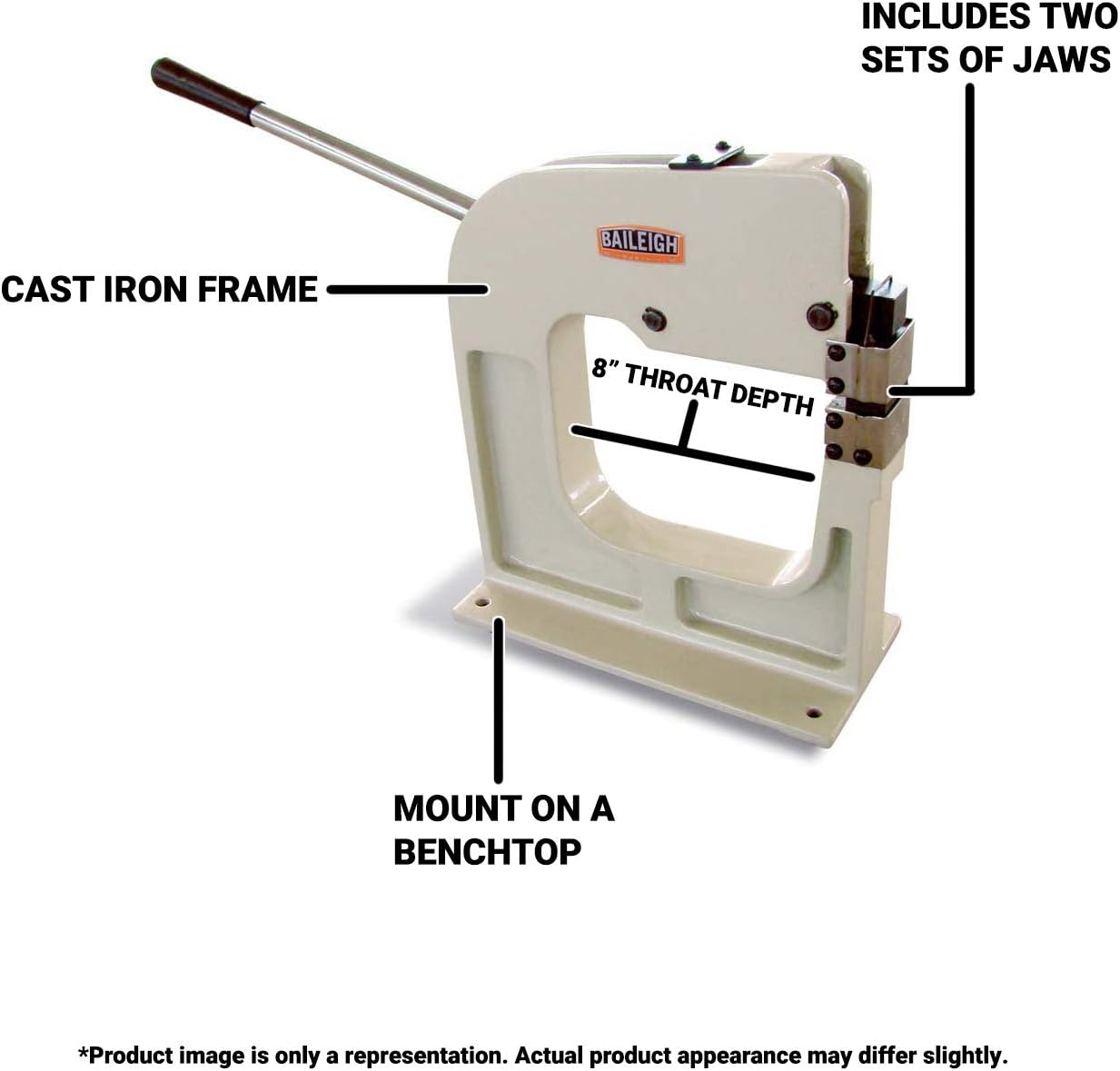

FORMING CAPACITY: 16-gauge mild steel (14-gauge aluminum).TWO SETS OF QUICK-CHANGING JAWS: One set for shrinking and one set for stretching.MANUAL LEVER: Controls the amount of shrink or stretch.LARGE 8-INCH THROAT: Allows you to work with curved or uneven pieces of metal, not just flat sheets.HEAVY CAST IRON FRAME: Enables the machine to shrink and stretch thick sheets for many years.

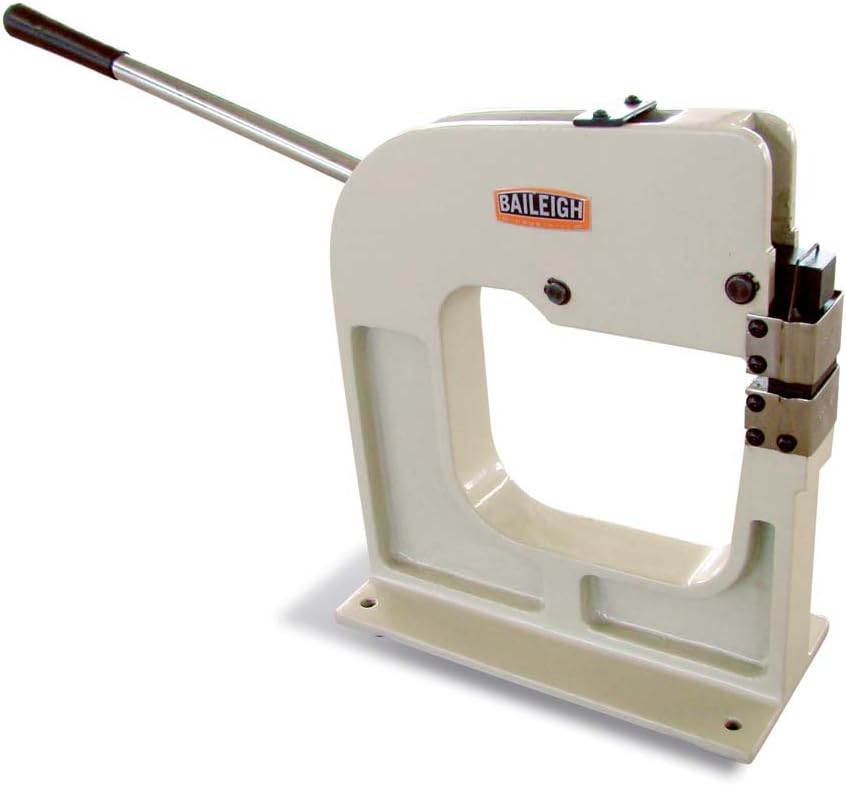

The Baileigh MSS-16 manually-operated metal-forming shrinker stretcher has a heavy cast iron frame with a deep 8-inch throat. This machine comes standard with two sets of jaws, one for shrinking and one for stretching. This sheet metal shrinker stretcher has a mild steel capacity of 16 gauge, and an aluminum capacity of 14 gauge. No other sheet metal stretcher shrinker on the market has such a generous throat depth with a heavy maximum capacity. Baileigh covers this shrinker stretcher with a one-year parts warranty and lifetime technical support by phone. Note: The square corner jaws on this model can leave small indents that require additional smoothing. For a shrinker stretcher without square corner jaws, check out the Baileigh MSS-16F.

Baileigh MSS-16 Metal Shrinker Stretcher Baileigh MSS-18 Metal Shrinker Stretcher Baileigh MSS-16F Metal Shrinker Stretcher Baileigh MSS-14H Metal Shrinker Stretcher
Mild Steel Capacity 16 gauge 18 gauge 16 gauge 14 gauge
Aluminum Capacity 14 gauge 16 gauge 14 gauge 12 gauge
Throat Depth 8" 1.5" 6" 6"
Stand Optional Included Included Included
Power Manual Manual Manual Manual
Shipping Weight 50lbs 81lbs 92lbs 420lbs
Shipping Dimensions (Inches) 18x14x8 44x19x8 46x20x8 60x44x77
